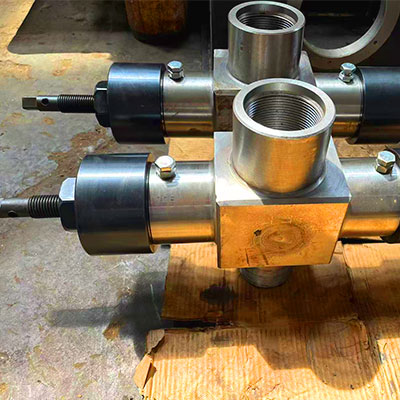

Polished rod BOP

Polish Rod Bop Single Ram, 2-7/8” And 3-1/2:, Top And BottomConnection: 2-7/8” And 3-1/2” Eue Box X Pin,C/W Threads Protector, Working Pressure: 3,000 Psi Bidirectional,Material: Alloy Steel With Corrosion-Resistant Coating, Furnished For Polished Rod, Ram Seal Material: Hnbr

Contact Us

Product Introduction:

Polish Rod Bop Single Ram, 2-7/8” And 3-1/2:, Top And Bottom

Connection: 2-7/8” And 3-1/2” Eue Box X Pin,

C/W Threads Protector, Working Pressure: 3,000 Psi Bidirectional,

Material: Alloy Steel With Corrosion-Resistant Coating, Furnished For Polished Rod, Ram Seal Material: Hnbr


Technical Parameters



Polish Rod BOP Single Ram

Technical Parameters

序号

Item

规格型号

Mode

73-EU-BOP

89-EU-BOP

1

上下连接螺纹

Top and Bottom Connection

2-7/8” EUE BOX x PIN

3-1/2” EUE BOX x PIN

2

垂直通径

Vertical Bore

2.441 in

2.992 in

3

适用光杆尺寸

polished rod size

1.5 in

1.5 in

4

额定工作压力

Working pressure

3000 psi

3000 psi

5

最高工作温度

Maximum temperature

120° Celsius

120° Celsius
















Welcome to leave a message for detailed information!
