Product outline

Sucker rod guides are special tools mainly used for the centralization of the sucker rod string in well and prevent sucker rod and tubing wear. The company manufactures rolling wheel type rod guides, columnar type rod guides and clamp type rod guides, all conforming to SY/T582 The sucker rod string centralizer.

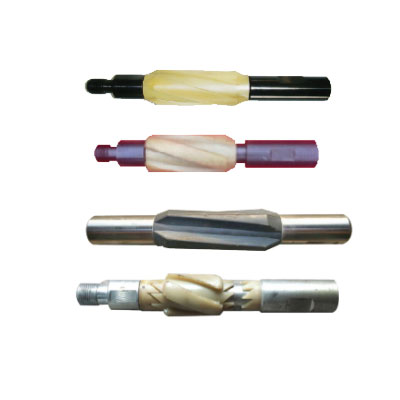

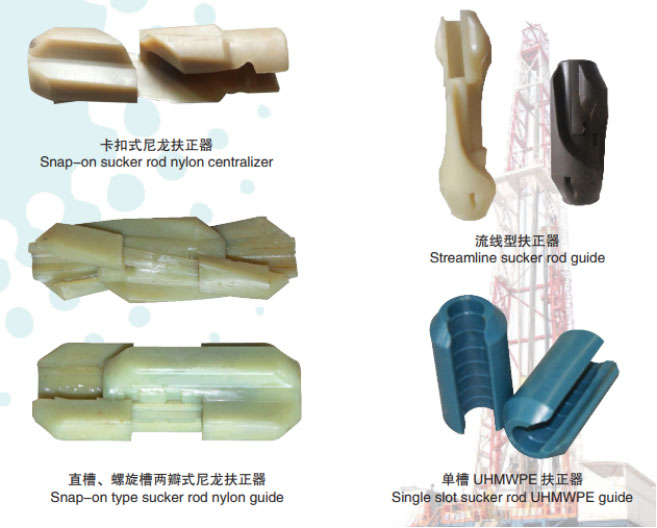

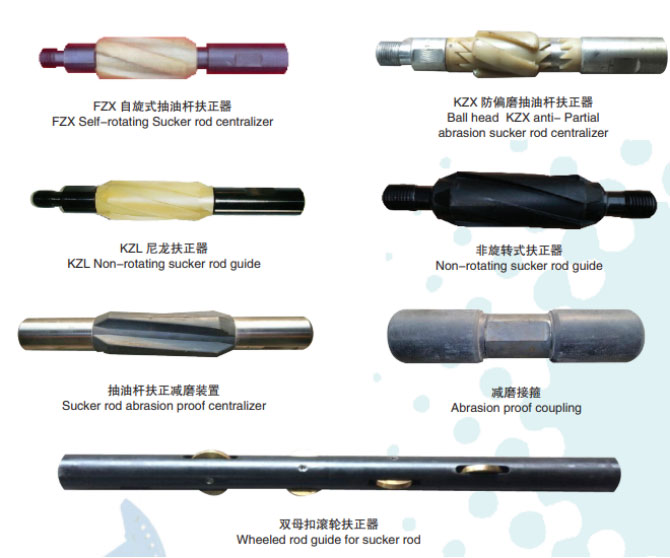

Type: Rolling wheel guides;  Columnar rod guides; Clamp rod guide.

Working principle：

Rolling wheel guides：The guides work by rolling wheels’ rolling in tubing and prevent the friction between the sucker rod string and tubing.

Columnar rod guides: The guides work by the nylon centralizing sleeve’s touching with tubing, so as to avoid the friction between the sucker rod string and tubing. Nylon centralizing sleeves can rotate and keep even wire. To replace wornout centralizing sleeves instead of shoat bole helps to save the production cost。

Clamp rod guides: The guides are clamped over the sucker rod string directly, easy for handling and with low cost.
